Smoke-EL (s)
Smoke-EL
In this pipe our SmokeOil is turned into white smoke. The evaporators are the same in each system, only the number of evaporators and the input signals vary.
The evaporators are mounted outside the model with u-mounts made of aluminum. Since the pipes become extremely hot (up to 100°C), they should not be mounted inside the model, or, if you do choose to mount them inside, sufficient airing needs to be added.
Since a 4mm tube and a 1.5 – 2.5mm² cable connect the evaporator, you will have to mount the tube and the cable wherever you want the smoke to appear on your model. We recommend mounting it on the tips of the wings, as this leads to the best visual results.
Technical Data Smoke-EL (s):
Dimension...: 180 x 20 mm (length x diameter)
Weight.........: 130g
Casing.........: Aluminum anodized
Cable...........: 200mm, 2,5mm² with MPX-Plug
We offer the evaporator in a set, It offers the complete set of parts that you need for your smoking device, making it easy for anyone to use our Smoke-EL system. All you need to add is an oil tank and batteries (you can, however, also use your main power LiPo 6s-12s)
Startersets

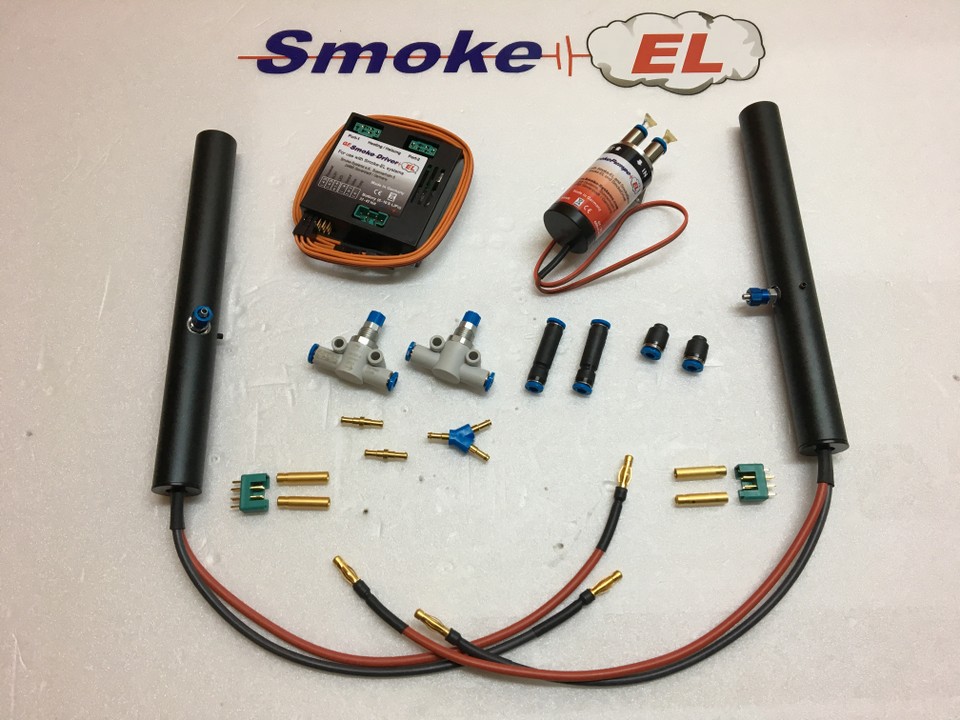

Starter set with two evaporators
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
785,00€
Add
Startersets
Starter set with two evaporators
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 12s-14s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
This set includes:
• 2 x Smoke-EL (S)
• G-Force SmokeDriver 12s-14s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system..
785,00€
Add
Startersets
Starter set with one evaporator
This set includes:
• Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system.
This set includes:
• Smoke-EL (S)
• G-Force SmokeDriver 6s-10s
• SmokePump
• Accessories kit (all Festo)
• 1L RedOil
In order for us to pre-set the telemetry system correctly, please select your telemetry system.
645,00€
Add
Smoke-Oil
We developed this novel smoke-oil exclusively for use with our Smoke-EL system.
RedOil is a fragrance-free paraffin-oil mixture.
Please choose a can size.
RedOil is a fragrance-free paraffin-oil mixture.
Please choose a can size.
49,00€
Add
Spareparts
Two Aluminium brackets to install the Smoke tube at your Aircraft.
Easy screw the bracket with 3mm screws to the wingtips (for example)
and mount the Smoketube withe the cable ties.
dimension: 80mm x 15mm x 10mm (L x b x h)
weight : 9g
Klick - For more pictures
Easy screw the bracket with 3mm screws to the wingtips (for example)
and mount the Smoketube withe the cable ties.
dimension: 80mm x 15mm x 10mm (L x b x h)
weight : 9g
Klick - For more pictures
29,00€
Add
Spareparts
This small valve can be inserted between the pump and the Y-junction.
The valve prevents oil from leaking via the pump and the tubes while the model is idling.
The valve prevents oil from leaking via the pump and the tubes while the model is idling.
19,80€
