Smoke-EL SmokeBlock

Smoke-EL
The Smoke-EL (SmokeBlock) is designed for continuous usage. Therefore, smoke production is only limited by the size of your tank and your battery power.

Additionally to this set you will need batteries and a tank for the smoke oil. The Smoke-EL system (SmokeBlock) is powered with 12 volt and can be connected directly to the lead battery in your model. The SmokeDriver supervises the battery voltage and will automatically switch the SmokeBlock off if voltage falls below 9.9V.

The SmokeDriver is connected to the receiver using a control channel. Using a Y-cable you can even manage the SmokeBlock and the engine control on the same channel. The built-in ventilator is linked to the revolution speed of your engine and will increase smoke flow accordingly.

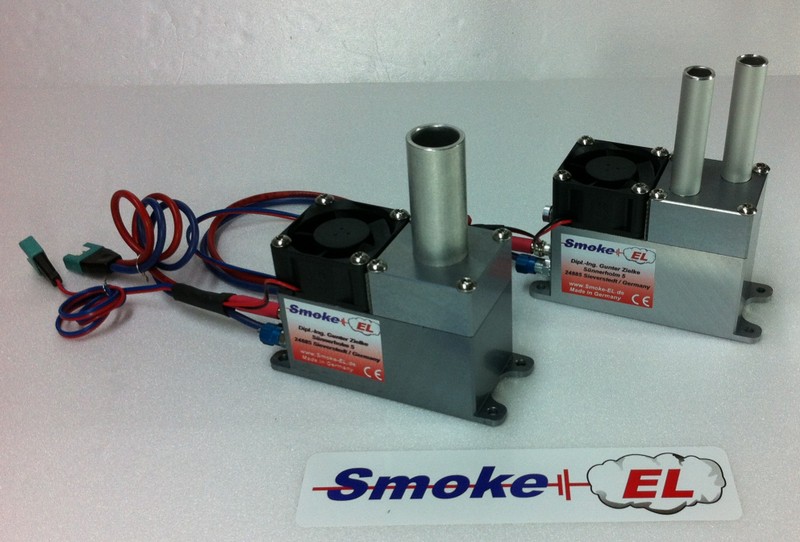

We offer our SmokeBlock with either one or two smoke stacks. And since people frequently ask: unfortunately, we do not offer black smoke.

Technical Data:
Dimensions.....:  80 x 40 x 60mm (L x W x H) without smoke stack
Cable...............:  20 cm
Voltage............:  12V
Power...............:  10-20A

For an easy start with our Smoke-EL system, we put together a starter set that includes everything you need to use the Smoke-EL system, except for a tank and batteries.
SmokeBlock
Startersets
Starter set SmokeBlock includes:

• Smoke-EL (SmokeBlock)
• SmokeDriver (12V)
• Accessories kit
• 1L RedOil air

Please choose your number of smoke stacks
385,00€
Add
Download:

Operating manual

SmokeBlock

Smoke-Driver


Test Modell-Werft 12/2013 Page: 1  2  3  4
