SmokePumpe

Smoke-EL

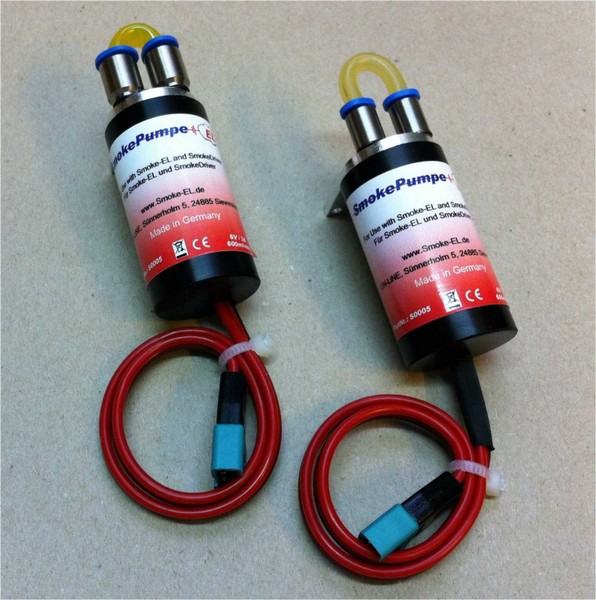

This extraordinary small SmokePump delivers.

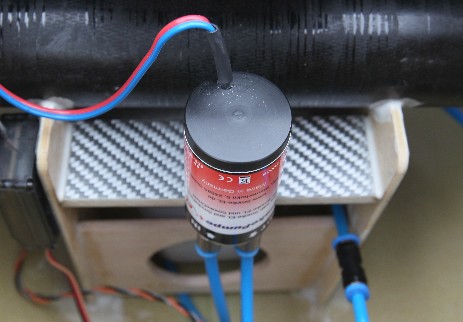

Weighing only 90g, it still has a flow rate of 600ml/min. The diameter of the SmokePump is only 27mm, its length 50mm. You can easily attach the SmokePump to your model using only two screws. The input signal will come from the SmokeDriver, so there is no need for additional programming.

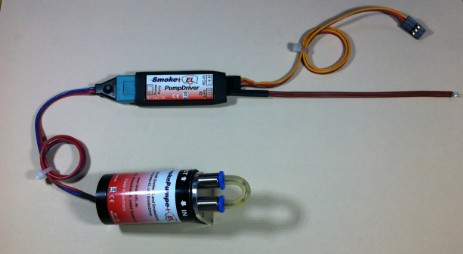

Moreover, to enable usage of this extraordinary small and lightweight SmokePump with other smoke devices, we developed the PumpDriver. The PumpDriver is controlled through one channel and its pumping capacity, ranging from 0% - 100%, is remotely adjustable. A safety device will prevent any unwanted triggering of the pump. We offer two versions of the pump: one version connects to a PowerBox without extra batteries, the other can connect to a separate 2S-LiPo-battery

Used Materials:
The pump housing and lid are made of Al Zn Mg Cu. 1,5, usage for aircraft construction for high stress parts, hardness Brinell 140. Cog wheels made of Ms 58 / CuZn 40 Pb 2, mounted swimming in the box, not pressed, hardness Brinell 95. Seals Viton von Du Pont, up to +200°C, resistant against all hydrocarbons.

Technical Data:
Weight.............................:   90g
Dimension.......................:   27mm
Length..............................:   50mm
Flow rate..........................:   600 ml/min
Voltage.............................:   6 Volt
Current Consumption......:  3 A
Pipe Connector................:   4mm Feso
Plug Connector.................:   MPX
SmokePumpe
Spareparts
This is an extraordinary small and lightweight SmokePump for use in any smoke device. Its flow rate is up to 600ml/min at 6V and 3A.
159,00€
Add

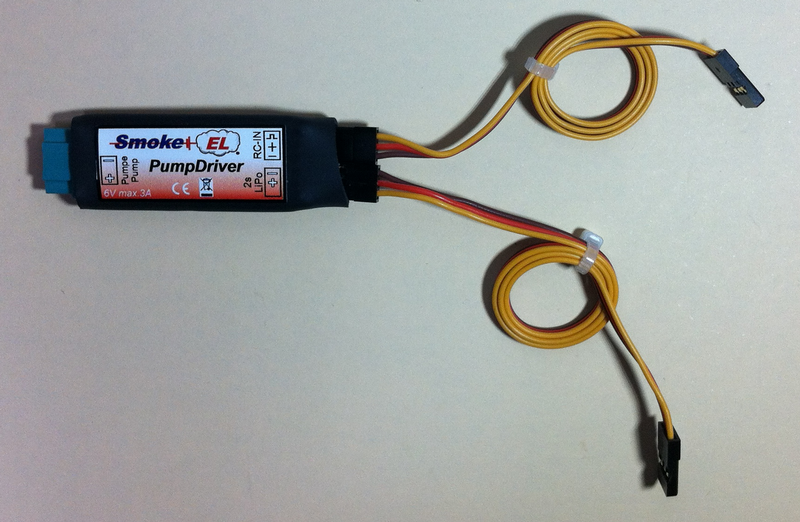

PumpDriver
Spareparts
This especially small PumpDriver packs a punch.

Weighing only 19g it supplies the SmokePump directly from a 2S-LiPo battery or the PowerBox. To connect the PumpDriver with the receiver, you simply need one free channel.

Please choose your battery connection.
35,00€
Add

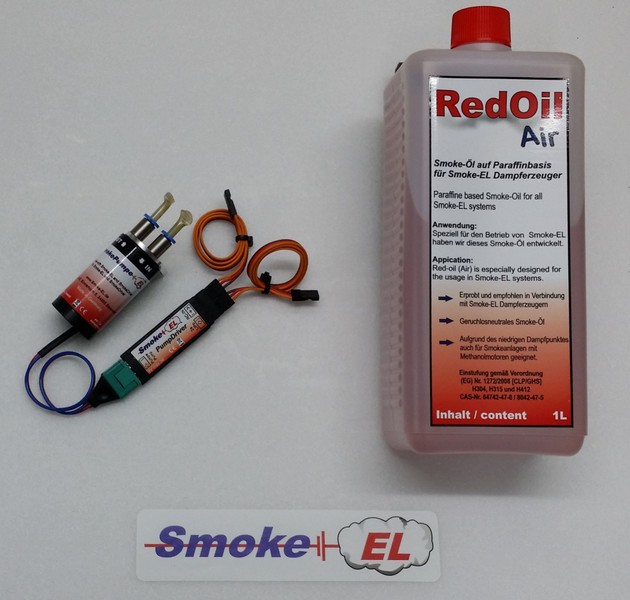

SmokeSet for gas-engines
Startersets
The Set includes the SmokePump with PumpDriver and 1 liter RedOil (air).

You only have to add the Tank and the house connector to the exhauster.
195,00€
Add
